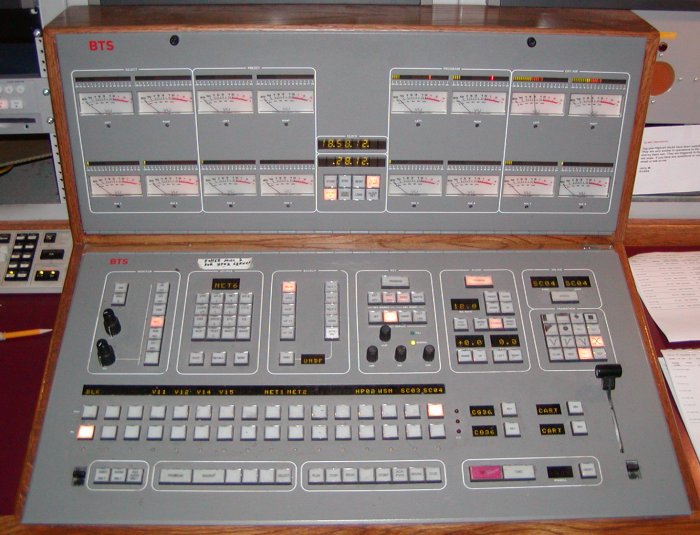

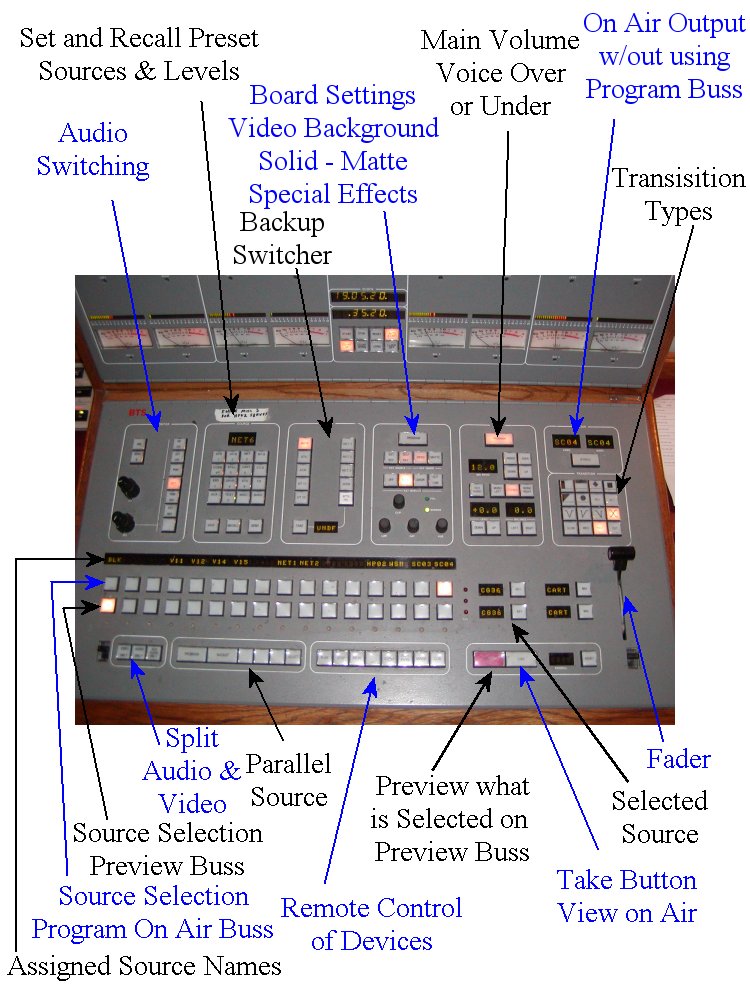

This BTS switcher controls audio and video sources. This switches audio and video sources from the preview bus to the program bus (out to air.)

• It has many effect transitions. Fade to black, dissolve, picture in a picture.
• Split audio and video using different sources
• Built in Backup Switcher - Broadcast and edit programs at the same time
• Remote control VTR and other devices
• Switcher is automated by Harris Computer
• Insert voice over program audio
• Save preset sources, levels and fades for recall

Below is the switcher video processor

Front

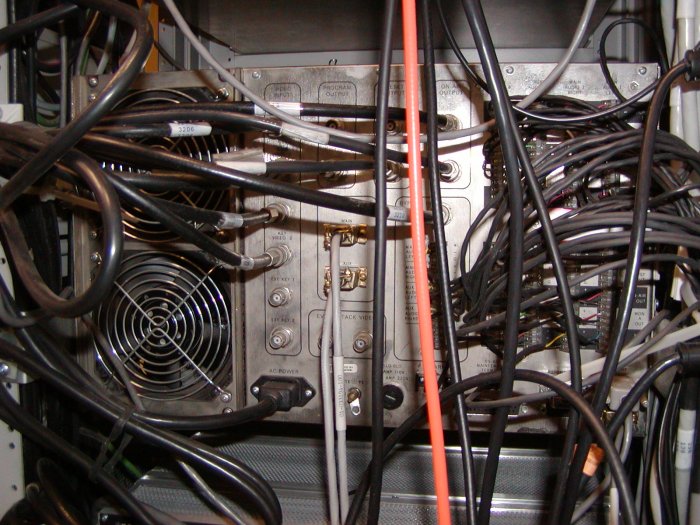

Back

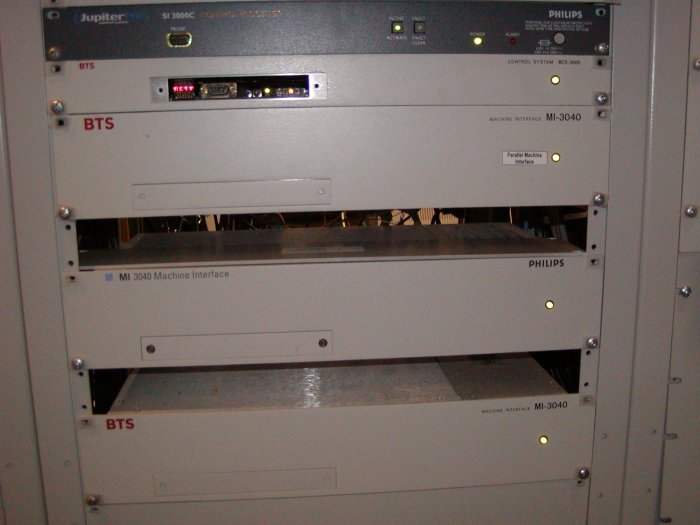

Device Control

This switcher controls the Router.
